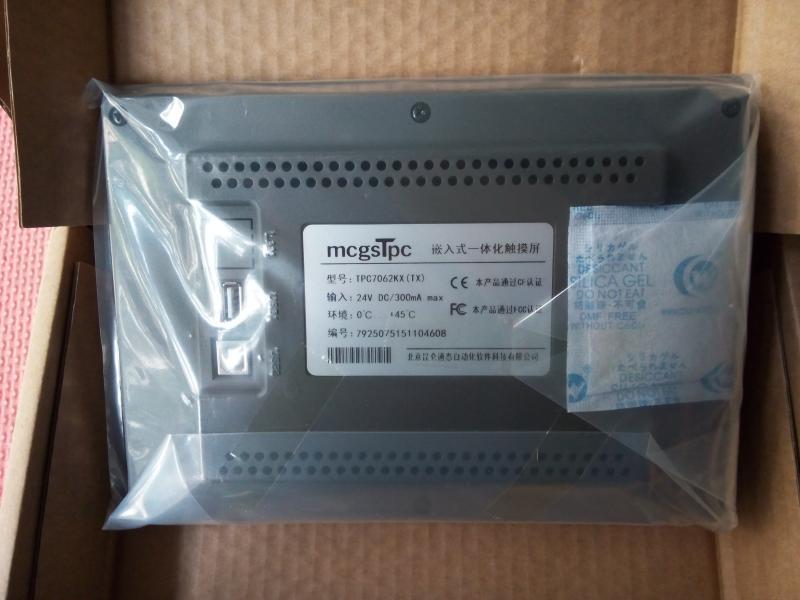

TPC7062TX(KX) MCGS HMI Touch Screen 7 inch 800*480 with program cable NE [TPC7062TX(KX)] - €107.88

Startseite / Servoantriebe / TPC7062TX(KX) MCGS HMI Touch Screen 7 inch 800*480 with program cable NE

Product Description

1,package included:

1pcs TPC7062KX(TX) updated to TPC7062TX(KX) human machine interface HMI touch screennew in box;

1pcs programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, Performance specification

Model	hole size	feature
TPC7062TX(KX)	215*152mm	Main frequency 400MHZ,with data storage function
TPC7062TD(KT)	215*152mm	Main frequency 400MHZ,no data storage function
TPC7062KD	192*138mm	Main frequency 400MHZ,no data storage function
TPC7062Ti	215*152mm	Main frequency 600MHZ,with data storage function,with Ethernet

Product Features
Dimensions ( in inches )	7 "
LCD	TFT LCD, LED backlight
Display Color	True color, 65535 colors
Resolution	800 × 480
The brightness of the LCD screen	200cd / ㎡
Touch screen	Resistive
Power supply	24VDC
Rated Power	5W
CPUmotherboard	ARM CPU , 400MHz
Memory	64M
Storage devices	128M FLASH
Configuration software	The MCGS Embedded configuration software ( running version alarm formulation , data storage function, save the initial value )
Environmental conditions
Operating Temperature	0 ℃ to 45 ℃
Operating Humidity	5% to 90%
Storage Temperature	-10 ℃ to 60 ℃
Vibration frequency	10-57Hz 57-150Hz
Vibration acceleration	0.075mm 9.8 m / s 2
Vibration sweep rate	Oct / min ≤ 1
Specifications
Structure	The structure of industrial plastics
Color	Industrial gray
Panel Size	226.5mm × 163mm
Cabinet openings	215mm × 152mm
External interface
Serial ports	com1 RS232,com2 RS485
USB	1 host and 1 client
Ethernet	No
Certified Protection
Authenticate	CE / FCC
Protection class	IP65
