NEMA34 10N.m 2phaseasy servo Closed-Loop-Schrittmotor-Antriebskit CNC AC20-75V LCDA86H + LC86H2128 [LCDA86H+LC86H2128] - €139.50

Startseite / Servoantriebe / NEMA34 10N.m 2phaseasy servo Closed-Loop-Schrittmotor-Antriebskit CNC AC20-75V LCDA86H + LC86H2128

Product Description

NEMA34 10N.m 2phaseeasy servo Closed loop stepper motor drive kit CNC AC20-75V LCDA86H+LC86H2128

Packaging:

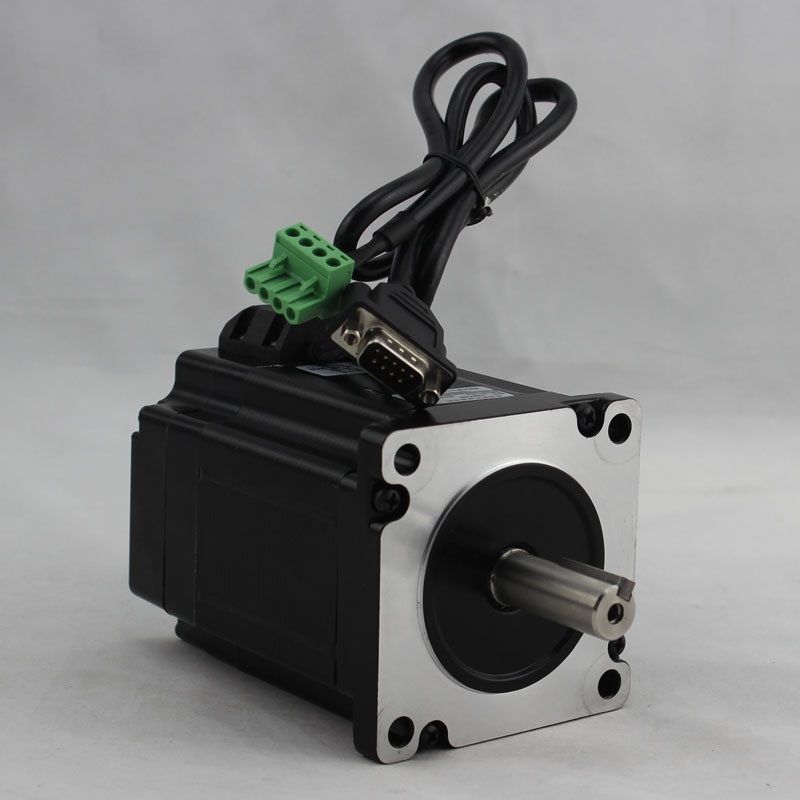

1pcs 2 phase NEMA34 10N.m Closed-loop steppermotor LC86H2128

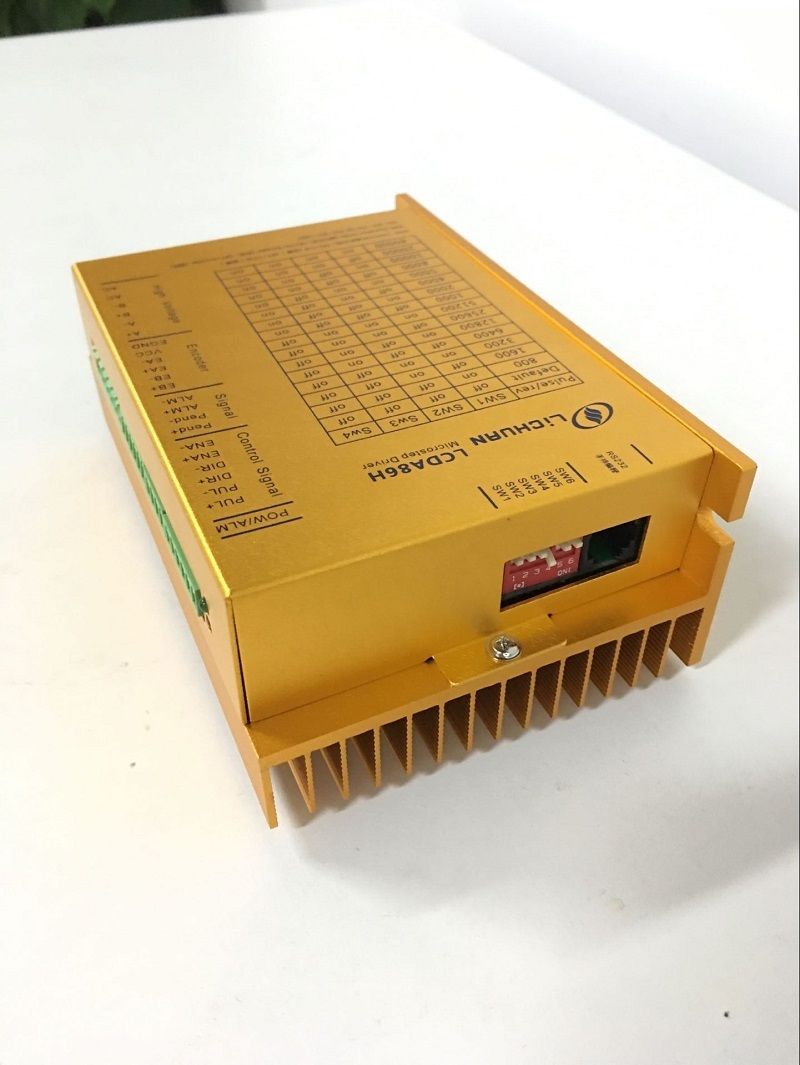

1pcs 2 phase NEMA34 closed loop stepper motordriver LCDA86H

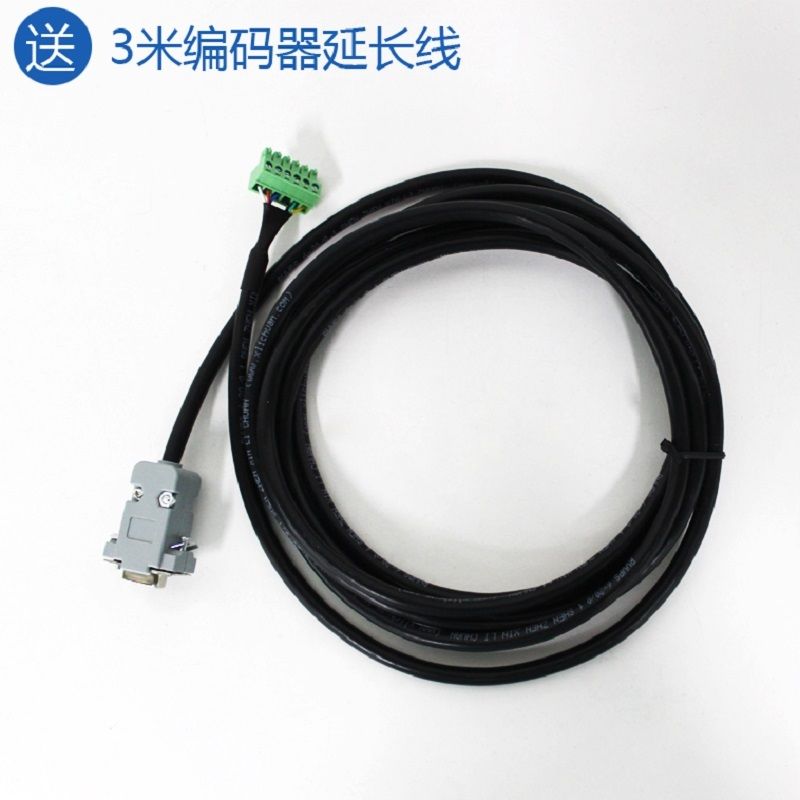

1pcs 3M Encoder cable. If you need longercables, please contact with us

Motor Parameters Overviews

Product Name	2phase nema34 closed loop stepper motor	Brand	Lichuan
External Diameter	86mm * 86mm	Highest speed	1200 rolls/min
Motor Length	152mm(encoder contained)	No. of encoder	1000 line
Holding Torque	10N.M	Diameter of shaft	14 mm
Weight	4.5 kg	Matched Driver	LCDA86H

Driver Basic Parameters

Name	2 phases 86 closed loop stepper driver	Brand	Lichuan
Model	LCDA86H	Drive motor	2 phases 86 closed loop step motor
Drive voltage	20-70VAC/30-100 VDC	Drive current	max 6 A
Subdivision range	2-256	Signal voltage	5V,current limiting resistance will be added when input 12 or 24V
Pulse frequency	200 khz/500khz	Alarm output	support
Signal input	pulse / direction and enable	Warranty period	1 year
