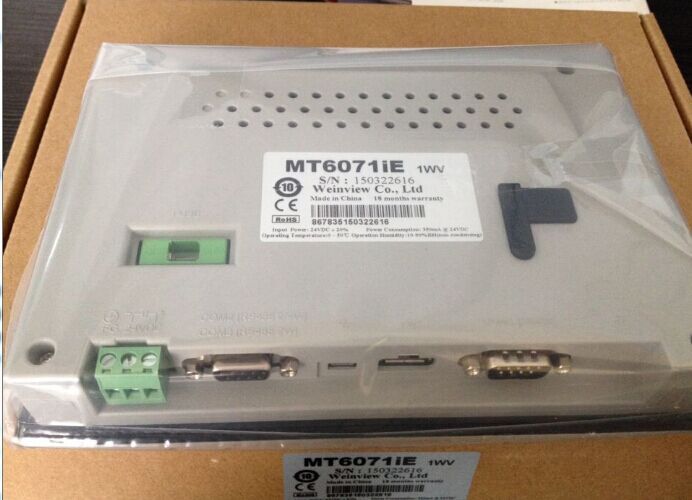

MT6071iE Weinview HMI Touch Screen 7inch 800*480 1 USB Host new in box [MT6071iE] - €176.70

Startseite / Servoantriebe / MT6071iE Weinview HMI Touch Screen 7inch 800*480 1 USB Host new in box

Product Description

1,package included:

1pcs MT6071iE human machine interface HMI touch screen newin box;

1pcs programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, Performance specification

display	Display type	7”TFT
	resolution	800 x 480
	lightness (cd/m2)	350
	contrast	500:1
	backlight	LED
	Backlight life	30,000 hours
	color	24bits
Touch panel		Four-wire analog resistance type
memory	Flash (MB)	128
memory	DRAM (MB)	128
processor		32Bit RISC Cortex-A8 600MHz
communication	SD	N/A
	USB Host	USB 2.0 x 1
	USB Client	USB 2.0 x 1
	Ethernet	N/A
	COM	Com1: RS-232,COM2:RS-485 2w/4w,Com3:RS-485 2w
Calendar		Built in
power	input	24±20%VDC
	power	250mA 24V
	Isolated power	Built in
	Pressure-proof	500VAC (1 munite)
	Insulating resistance	50MW at 500VDC
	Quake-proof	10 to 25Hz(X,Y,Z 2G 30munites)
Specifications	Sheathing material	ABS
	Outside measurement	200.4 x 146.5 x 34mm
	Opening size(mm)	192 x 138 mm
	Weight(kg)	0.6 kg
Operating Environment	Protection level	NEMA4/IP65
	Storage Temperature	-20 to 60°C (-4°to 140°F)
	Operating Temperature	0°to 50°C(32°to 122°F)
	Operating Humidity	10% to 90% 40°C
CE Certification	CE	CE marked
Software		EasyBuilder Pro V3.00.01 or latest version
