Product Description
1,package included:

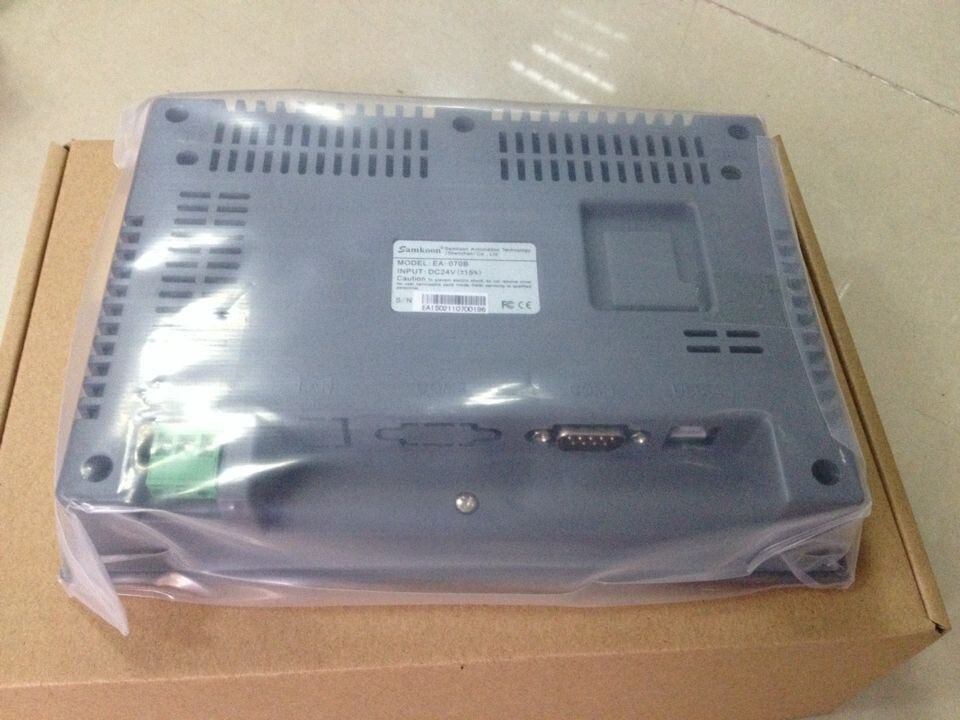

1pcs EA-070B humanmachine interface HMI touch screen new in box;
1pcs programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)
The software is free(we can send it by email if youcan’t download it by yourself)
2, Performance specification
|
EA-070B Key Technical Parameters |
|
|
Model |
EA-070B |
|
DisplaySize |
7”(length: width=16:9) |
|
Resolution |
800x480 |
|
Brightness |
450cd/m2 |
|
Contrast |
450:1 |
|
color |
262,144color |
|
Backlight |
LED |
|
Controlpanel |
4-wirehigh-precision electric resistance touch screen |
|
COM |
1xCOM(RS232,RS422,RS485) |
|
USBdownload port USB Device |
YES |
|
USBport USB Host |
None |
|
Ethernetport |
None |
|
SDcard |
None |
|
Storage |
128MFLASH+64M DDR2 |
|
CPU |
ARM9400MHz |
|
Supplypower |
DC:24V(±15%),10W |
|
Powerconsumption |
6W |
|
FCCcompatibility |
FCC,Class A |
|
Pressure-prooftest |
1000VAC/per minute |
|
CEcertification |
EN55022EN55024 |
|
Operationtemperature |
-100~650 |
|
Operationhumidity |
10~90%RH(no condensation) |
|
Shockproofdegree |
10-25Hz(X Y Z dimension 2G/30 minutes) |
|
ProtectionLevel |
IP65(front panel) |
|
Curstmaterial |
Engineeringplastic ABS+ PC |
|
Externalsize |
203x145x41(mm) |
|
Installedportiforium size |
192x138(mm) |
|
weight |
About1.5kg |
|
Configurationsoftware |
SamDraw3.3 |
