XP2-18RT XINJE Integrator of PLC&HMI OP330 operate panel XC2 10DI/8D [XP2-18RT] - €111.60

Startseite / Servoantriebe / XP2-18RT XINJE Integrator of PLC&HMI OP330 operate panel XC2 10DI/8D

Product Description

1,package included:

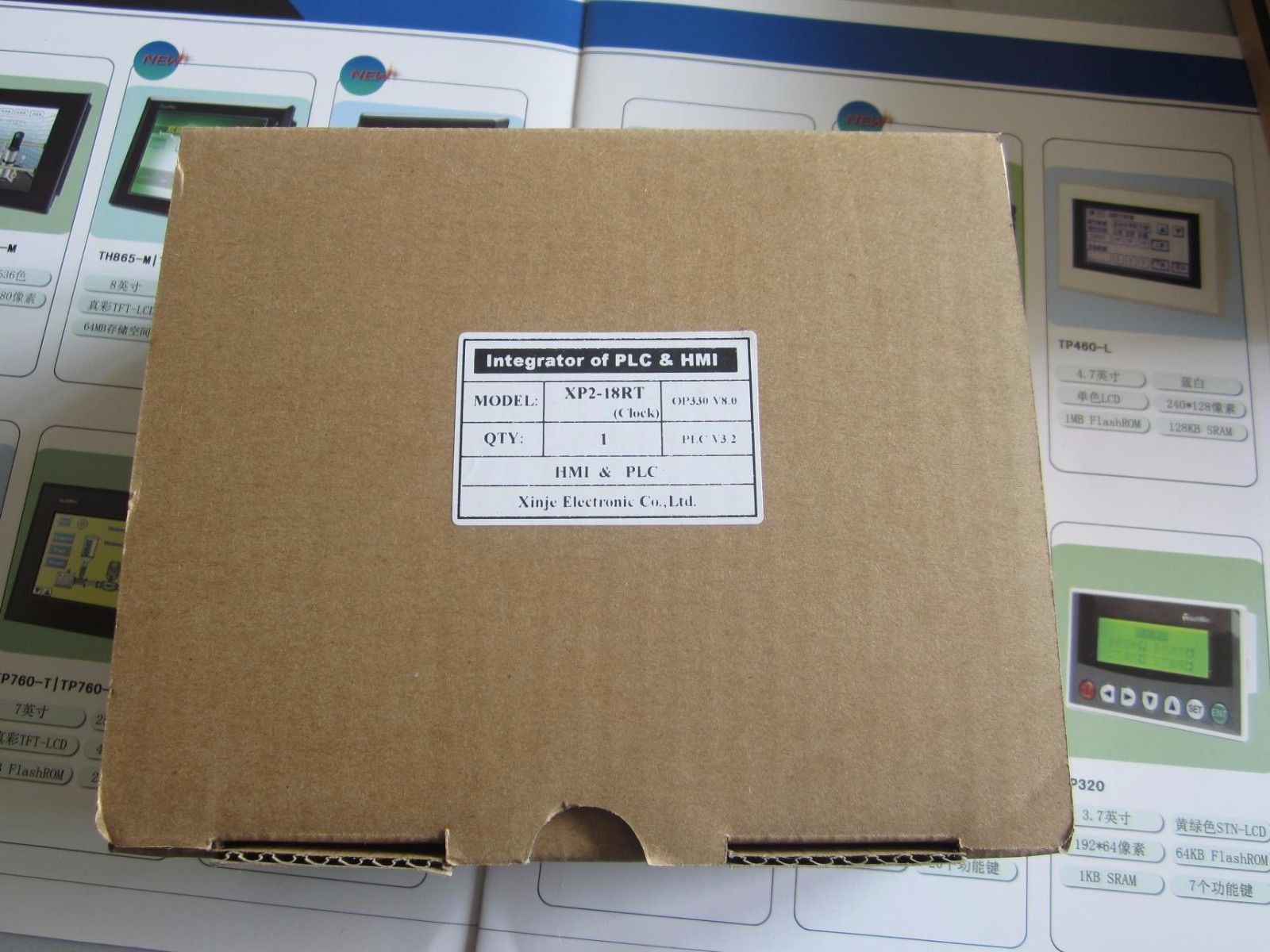

1pcs XP2-18RT text panel new in box;

1pcsdownloading programming cable(Only offer it free when you ask for after order.Not ship it default. The communication cable is not included, if you need, pleasecontact us and inquiry it)

Thesoftware is free(we can send it by email if you can’t download it by yourself)

2, DescriptionProduct

IntegratorOf PLC and HMI (PLC features same as XC2 Series)

Input:10DI/Optocoupler

Output:8DO/(relay, transistor, relay transistor hybrid output)

LCDdisplay: 192x64 pixels (3.7inh);

LCD lifeof up to 20 thousand hours

Functionkeys up to 26

Keysensitive and accurate

HMI andPLC using the same programming cable

3，Specifications:

Input voltage	DC24V
Current Consumption	Less than 10W (TYP2.0W)
Allowable Momentary Power-cut	Less than 20ms
Voltage Endurance	AC1000V-10mA 1 minute (signal and ground)
Insulated Resistance	DC500V-about 10MΩ (signal and ground)
Operation Temperature	0~50 °C
Storage Temperature	-10~60 °C
Ambient Humidity	20~85%(Non-condensing, dry bulb)
Vibration Resistance	10~25Hz (X,Y,Z directions for 30 minutes 2G)
Interference Rejection	Noise voltage: 1000Vp-p
Atmosphere	Free of corrosive gas
Protect Configuration	IP65F
