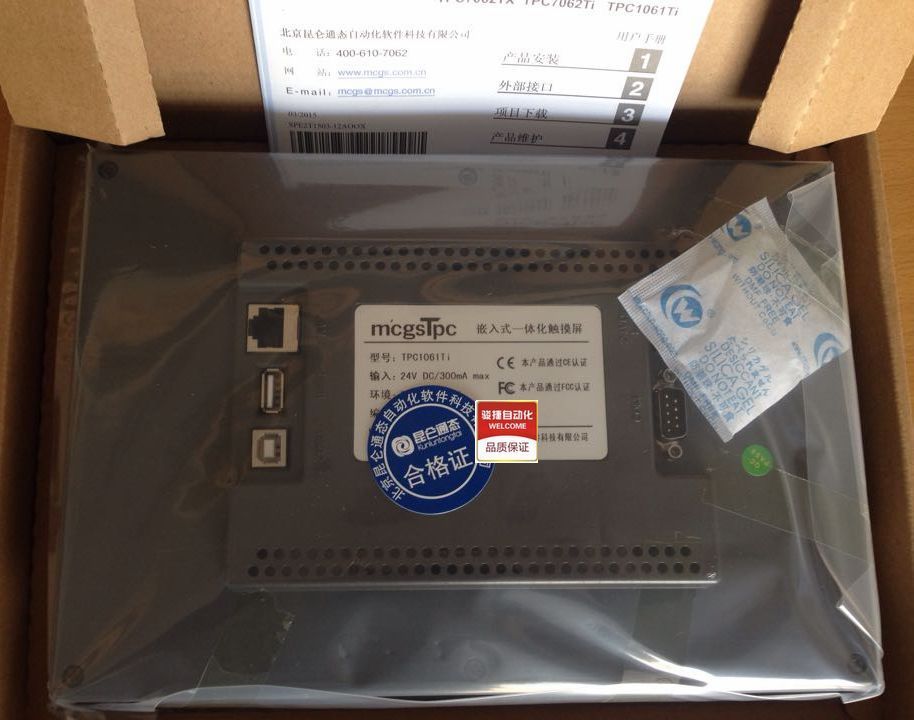

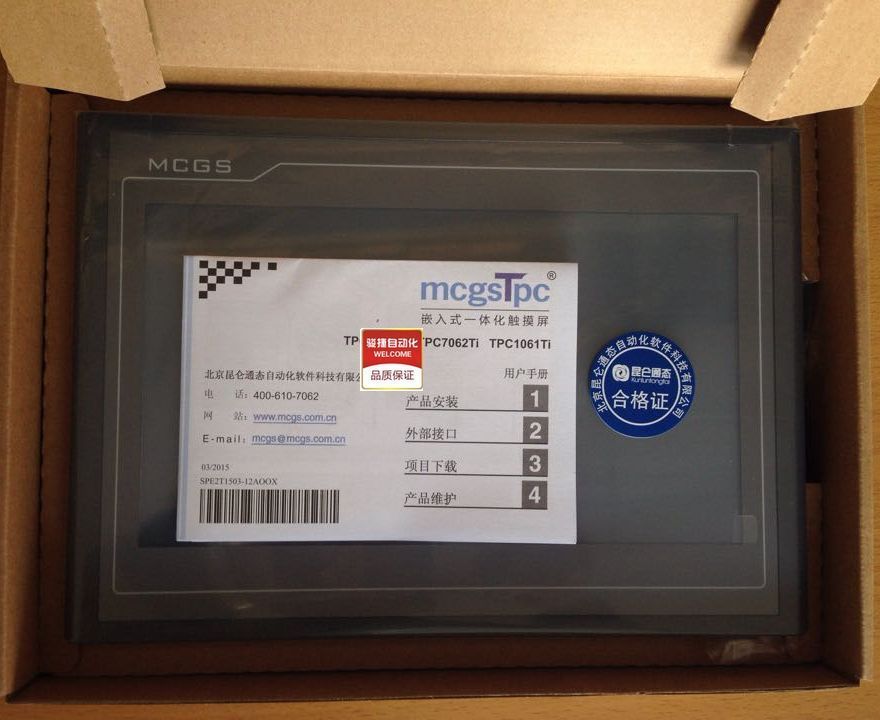

TPC1061Ti MCGS HMI Touch Screen 10.2inch 1024x600 Ethernet with program
TPC1061Ti MCGS HMI Touch Screen 10.2inch 1024x600 Ethernet with program
TPC1061Ti MCGS HMI Touch Screen 10.2inch 1024x600 Ethernet with program

TPC1061Ti MCGS HMI Touch Screen 10.2inch 1024x600 Ethernet with program

  • Artikelnummer: TPC1061Ti

€190.00
Jetzt nur noch €176.70

QTY: Unit(s)

Product Description

1,package included:

1pcs  TPC1061Ti  human machine interface HMI touch screen newin box;

1pcs programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, Performance specification

Product Features

　

Dimensions ( in inches )

10.2 "

LCD

TFT LCD, LED backlight

Display Color

True color, 65535 colors

Resolution

1024x600

The brightness of the LCD screen

200cd / ㎡

Touch screen

Resistive

Power supply

24VDC

Rated Power

5W

CPUmotherboard

ARM CPU , 600MHz

Memory

128M

Storage devices

128M FLASH

Configuration software

The MCGS Embedded configuration software ( running version alarm formulation , data storage function, save the initial value )

Environmental conditions

　

Operating Temperature

0 ℃ to 45 ℃

Operating Humidity

5% to 90%

Storage Temperature

-10 ℃ to 60 ℃

Vibration frequency

10-57Hz 57-150Hz

Vibration acceleration

0.075mm 9.8 m / s 2

Vibration sweep rate

Oct / min ≤ 1

Specifications



Structure

The structure of industrial plastics

Color

Industrial gray

Panel Size

274mm × 193mm

Cabinet openings

261mm × 180mm

External interface

　

Serial ports

com1 RS232,com2 RS485

USB

1 host and 1 client

Ethernet

10/100M

Certified Protection

　

Authenticate

CE / FCC

Protection class

IP65

Garantie: 1 Jahr Qualitätsgarantie
