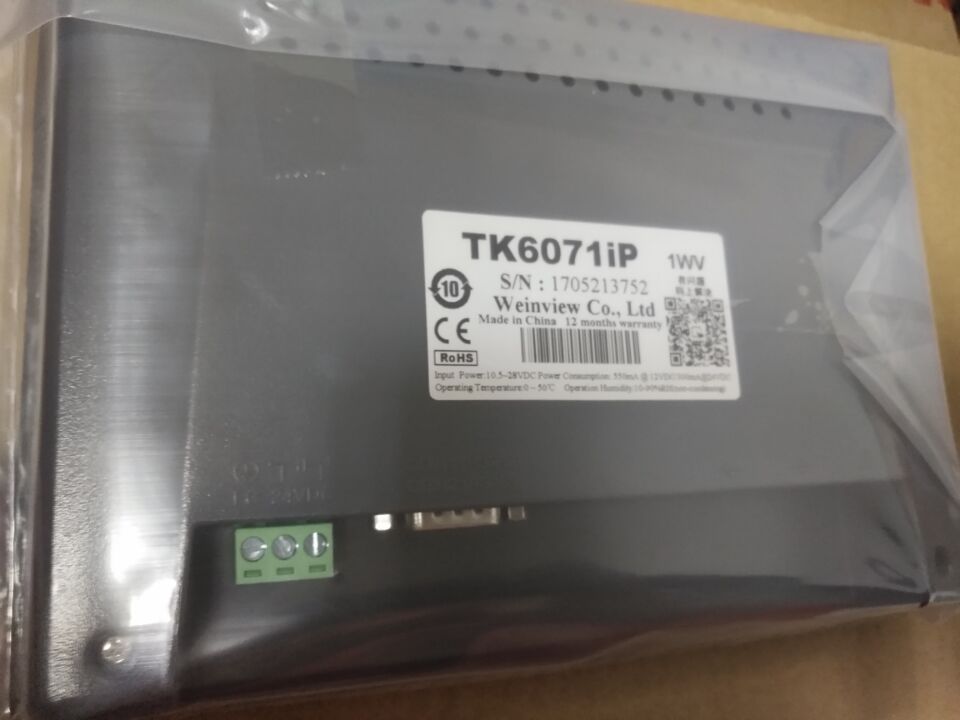

TK6071iP Weinview HMI Touch Screen 7inch 800*480 new in box replace old [TK6070iP] - €84.63

Startseite / Servoantriebe / TK6071iP Weinview HMI Touch Screen 7inch 800*480 new in box replace old

Product Description

1,package included:

1pcs TK6070iP human machine interface HMI touch screen newin box;

1pcs programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, WeinviewTK6070iP HMI

7"TFT LCD 800x480

Withoutfan cooling system

IP65panel protection level

LEDbacklight

Built-instorage memory and calendar

Com2 RS485support 187.5K MPI

3, Performance specification

display	Display type	7”TFT
	resolution	800 x 480
	lightness (cd/m2)	350
	contrast	500:1
	backlight	LED
	Backlight life	30,000 hours
	color	65536
Touch panel		Four-wire analog resistance type
memory	Flash (MB)	128
memory	DRAM (MB)	64
processor		32Bit RISC 400MHz
communication	SD	N/A
	USB Host	N/A
	USB Client	USB 2.0 x1
	Ethernet	N/A
	COM	COM1 RS-232, COM2 RS-485 2W/4W
Calendar		Built in
power	input	24±20%VDC
	power	250mA 24V
	Isolated power	N/A
	Pressure-proof	500VAC (1 munite)
	Insulating resistance	50MW at 500VDC
	Quake-proof	10 to 25Hz(X,Y,Z 2G 30munites)
Specifications	Sheathing material	ABS
	Outside measurement	200.4 x 146.5 x 34mm
	Opening size(mm)	192 x 138mm
	Weight(kg)	0.52 kg
Operating Environment	Protection level	NEMA4/IP65
	Storage Temperature	-20 to 60°C (-4°to 140°F)
	Operating Temperature	0°to 50°C(32°to 122°F)
	Operating Humidity	10% to 90% 40°C
CE Certification	CE	CE marked
Software		EB8000 V465.06 or latest version
