THA62-MT XINJE Touchwin HMI Touch Screen 10.1 inch with program cable ne [THA62-MT] - €191.58

Startseite / Servoantriebe / THA62-MT XINJE Touchwin HMI Touch Screen 10.1 inch with program cable ne

Product Description

1,package included:

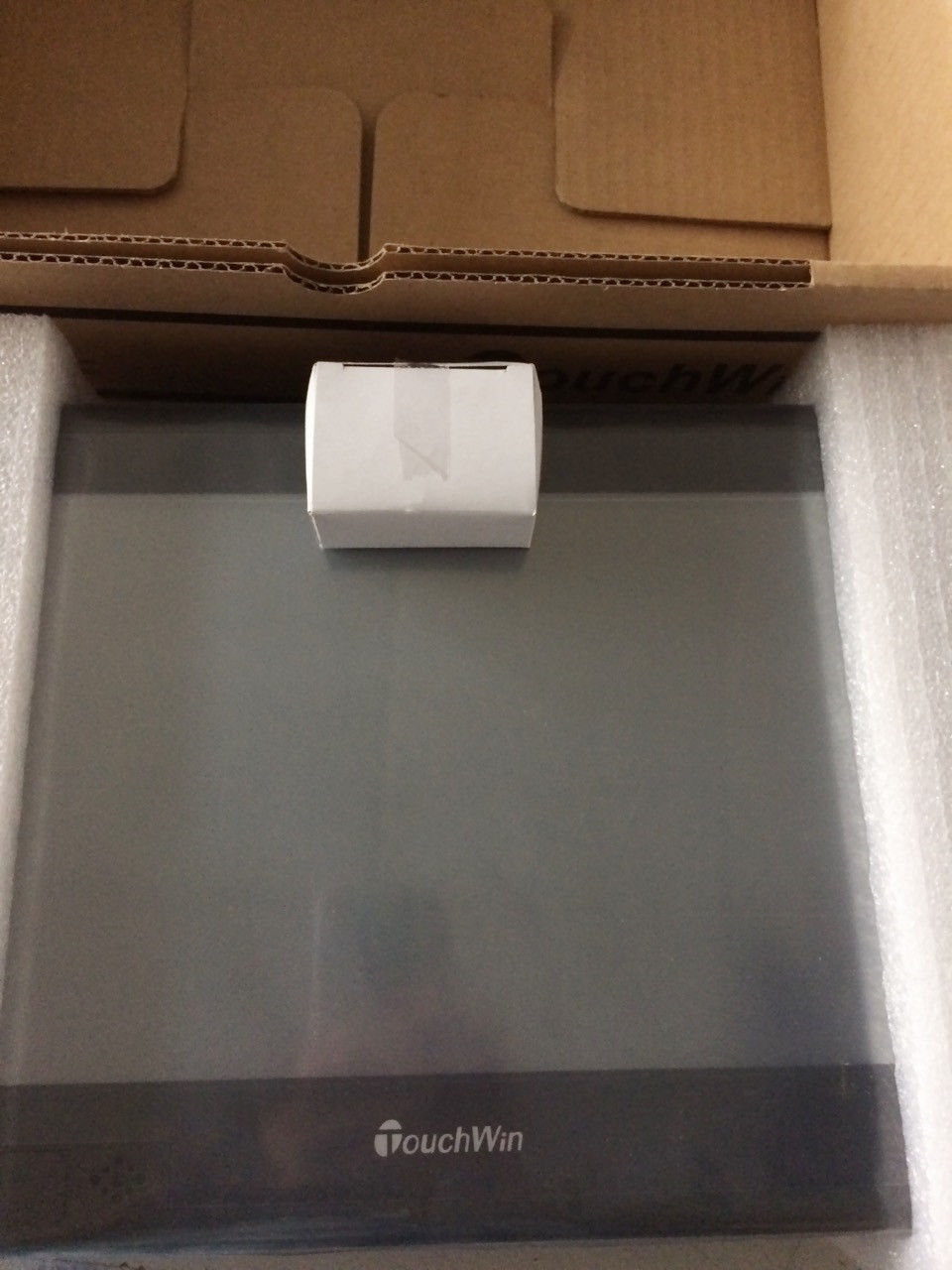

1pcs THA62-MT humanmachine interface HMI touch screen new in box;

1pcs programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, Performance specification

Series

Model

LCD size

Resolution

(pixel)

Screen

PORT1

Download port

PORT2

PLC port

PORT3

EXT port

USB-A

port

Download way

THA62

THA62-MT

10.1″

800*480

128

232/485

232/485/422

USB-B

THA62-UT

Item		THA62-MT
Electrical	Input voltage	DC20-DC28V
	Consumption current	630mA
	Momentary power off allowance	Less than 10ms
	Withstand voltage	AC1000V-10mA 1 minute ( signal and time )
	Insulated impedance	DC500V- about 10Mohm ( signal and time )

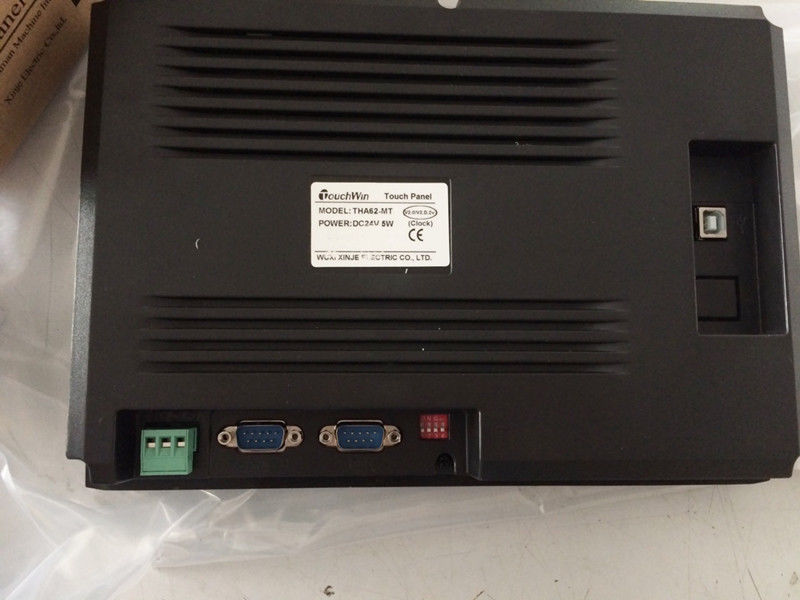

Interface	COM1	Support RS-232/RS-485
	COM2	Support RS-232/RS422/RS485
	USB1	N/A
	USB2	USB-B ( accord with USB2.0 )


Environment	Operation temperature	0-50degree centigrade
	Reserve temperature	-20-60degree centigrade
	Environment temperature	20-85% ( no condensation )
	Withstand oscillation	10-25Hz ( X, Y, Z each direction 30 minutes 2G )
	Anti-jamming	Voltage noise: 1000Vp-p, pulse 1us, 1 minute
	Surrounding air	No corrosive gas
	Protection construction	IP65
Screen specification	Type	65536 true colors
	Screen size	10.1 inch
	Use life	More than 50000 hours, 24 hours running when surrounding temperature is 25 degree centigrade
	Resolution	800*480
	Contrast	Non-adjustable
	Character	Chinese, English, Korean, Japanese…
	Character size	Any size and font
	Touch panel	4-wire resistance mode
Memory	Screen	128MB
Construction	Cooling method	Natural air cooling
	Exterior dimension	272.2191.751.2mm
	Mounting dimension	260.2*179.7mm
