TGA62-MT XINJE Touchwin HMI Touch Screen 10.1 inch with program cable ne [TGA62-MT] - €191.58

Startseite / Servoantriebe / TGA62-MT XINJE Touchwin HMI Touch Screen 10.1 inch with program cable ne

Product Description

1,package included:

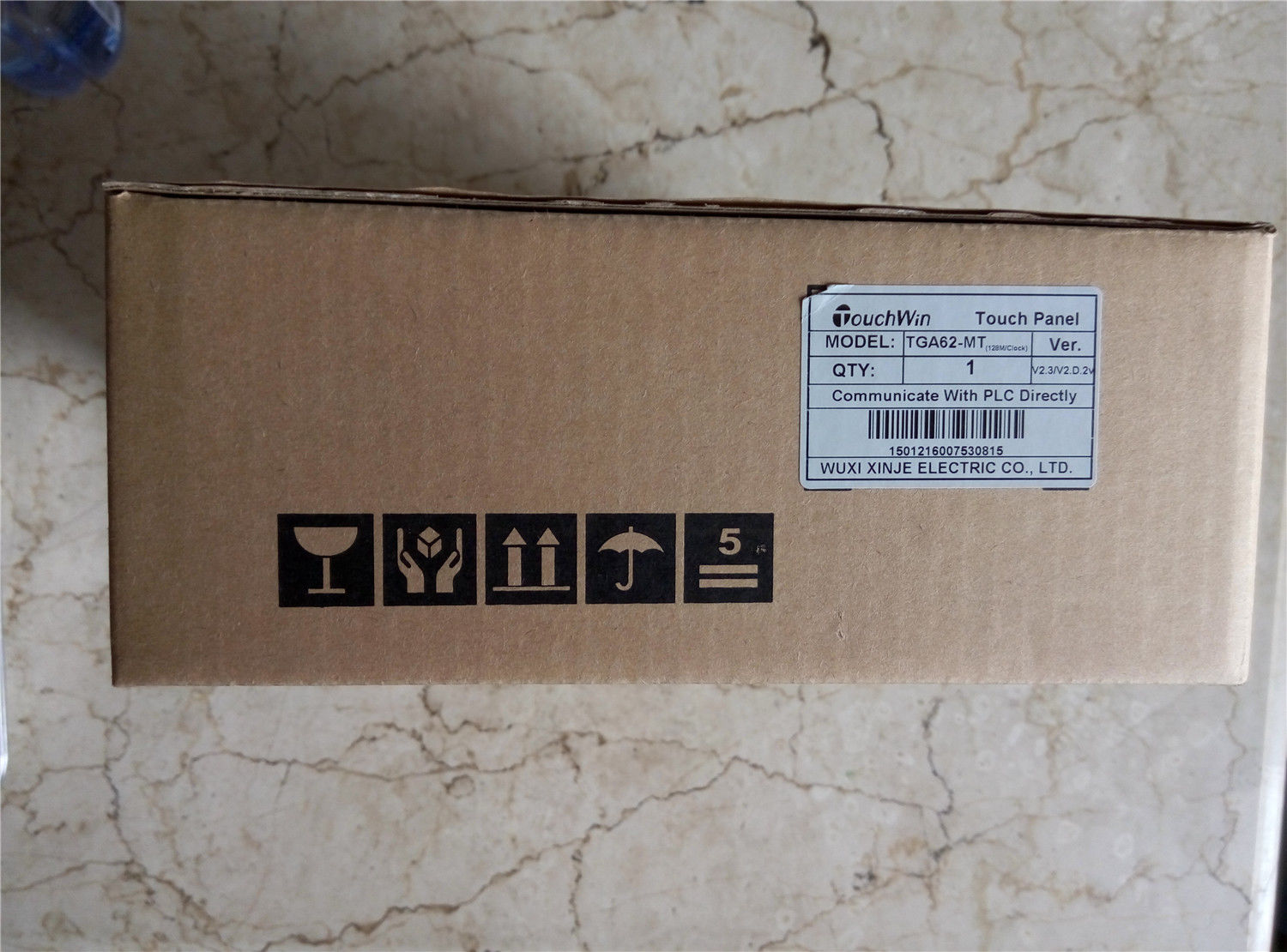

1pcs TGA62-MT humanmachine interface HMI touch screen new in box;

1pcs programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, Performance specification

TGA62-MT: USB-B port
TGA62-UT: USB-B port, USB-A port

TGA62-ET: USB-B port, USB-A port, Ethernet port

Specification:

Item		TGA62-MT
Electric	Input voltage	DC22-DC26V
	Current consumption	240mA
	Momentary power off allowance	Less than 10ms
	Withstand voltage	AC1000V-10mA 1 minute (signal and time)
	Insulated impedance	DC500V- about 10Mohm (signal and time)
Port	Communication	RS-232/RS-485/RS422
	Download	RS-232/RS-485
	USB1	N/A
	USB2	USB-B (USB2.0) for USB download
	Ethernet	N/A
Ambient	Operate temperature	0-50centigrade degree
	Storage temperature	-20-60centigrade degree
	Humidity	10-90% (no condensation)
	Withstand vibration	10-25 HZ (X, Y, Z each direction 30 minutes 2G)
	Noise immunity	Voltage noise: 1500Vp-p, pulse 1us, 1 minute
	Surrounding air	No corrosive gas
	Protection level	IP65
Screen	Type	16 million true colors
	Screen size	10.1 inch
	Using life	More than 50000 hours, 24 hours running when surrounding temperature is 25 centigrade degree
	Resolution	800*480
	Contrast	Adjustable
	Language	Chinese, English, German, French and so on
	Character	Any size and font
	Touch panel	4-wire resistance mode
Memory	Screen	128MB
Construction	Cooling method	Natural air cooling
	Dimension	272.2191.751.2
	Mounting dimension	260.2*179.7
