TG465-MT XINJE Touchwin HMI Touch Screen 4.3 inch with program cable new [TG465-MT] - €79.98

Startseite / Servoantriebe / TG465-MT XINJE Touchwin HMI Touch Screen 4.3 inch with program cable new

Product Description

1,package included:

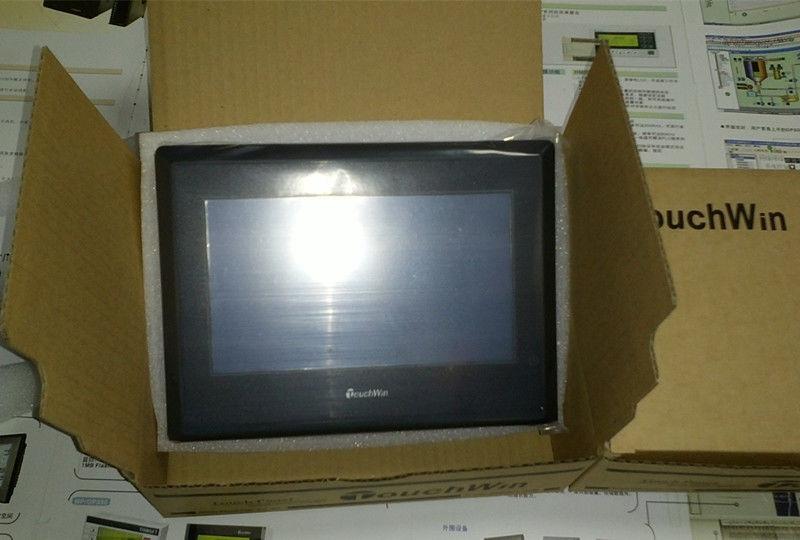

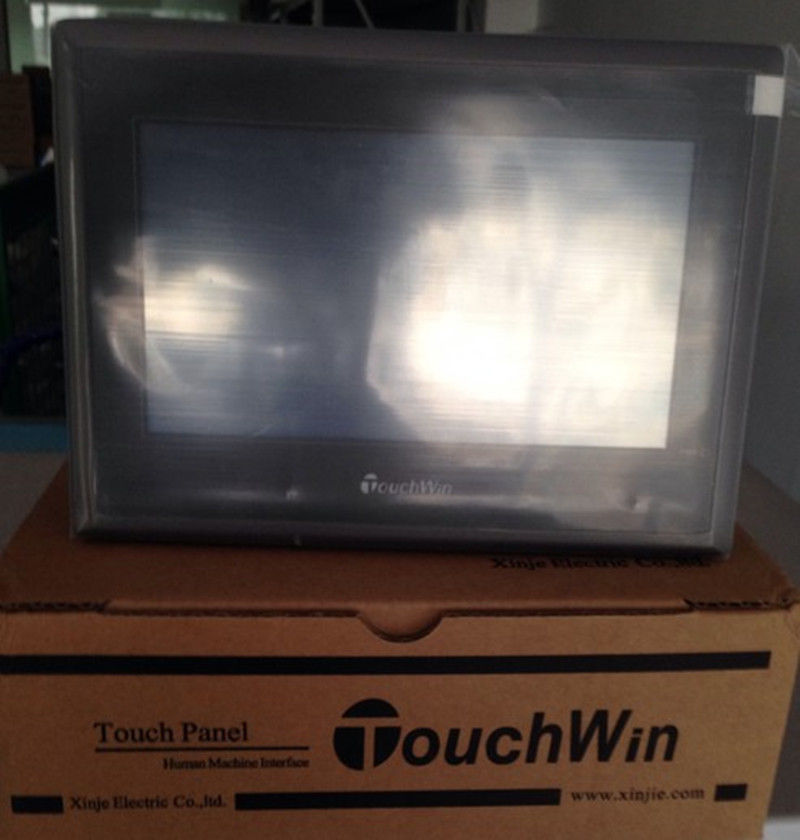

1pcs TG465-MT humanmachine interface HMI touch screen new in box;

1pcs programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)

The software is free(we can send it by email if youcan’t download it by yourself)

2, Performance specification

Item		TG465-MT
Electrical	Input voltage	DC20-DC28V
	Consumption current	140mA
	Momentary power off allowance	Less than 10ms
	Withstand voltage	AC1000V-10mA 1 minute ( signal and time )
	Insulated impedance	DC500V- about 10Mohm ( signal and time )
Interface		-
	USB1	No
	USB2	USB-B ( accord with USB2.0 )
	COM1	Support RS232, RS485
Environment	Environment temperature	20-85% ( no condensation )
	Operation temperature	0-50centigrade degree
	Reserve temperature	-20-60centigrade degree
	Withstand oscillation	10-25Hz ( X, Y, Z each direction 30 minutes 2G )
	Anti-jamming	Voltage noise: 1000Vp-p, pulse 1us, 1 minute
	Surrounding air	No corrosive gas
	Protection construction	IP65
Screen specification	Use life	More than 50000 hours, 24 hours running when surrounding temperature is 25 centigrade degree
	Type	160000 true colors
	Screen size	4.3 inch
	Resolution	480*272
	Contrast	Non-adjustable
	Character	Chinese, English, Korean, Japanese…
	Character size	Any size and font
	Touch panel	4-wire resistance mode
Memory	Screen	64MB
Construction	Mounting dimension	144.0*94.0mm
	Exterior dimension	152.0102.041.8mm
	Cooling method	Natural air cooling
