NEMA34 6N.m 2phaseasy servo Closed-Loop-Schrittmotor-Antriebs-Kit CNC AC20-75V LCDA86H + LC86H298 [LCDA86H+LC86H298] - €120.90

Startseite / Servoantriebe / NEMA34 6N.m 2phaseasy servo Closed-Loop-Schrittmotor-Antriebs-Kit CNC AC20-75V LCDA86H + LC86H298

Product Description

NEMA34 6N.m 2-Phasen-Servo Schrittmotor-Antriebskit mit geschlossener Schleife CNC AC20-75V LCDA86H + LC86H298

Verpackung:

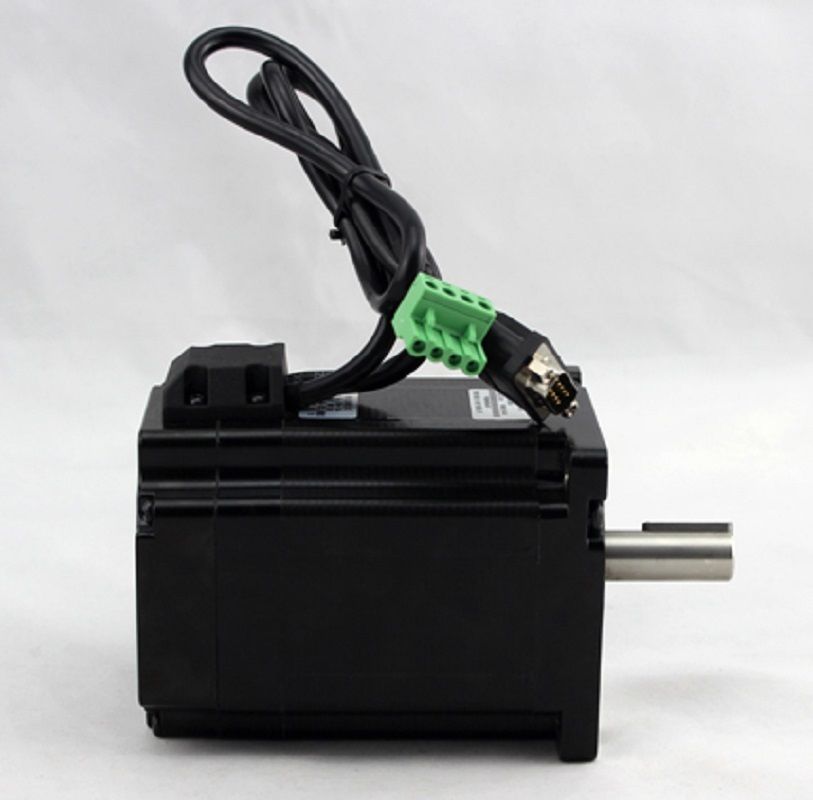

1 Stück 2 Phasen NEMA34 6N.m Schrittmotor LC86H298 mit geschlossenem Regelkreis

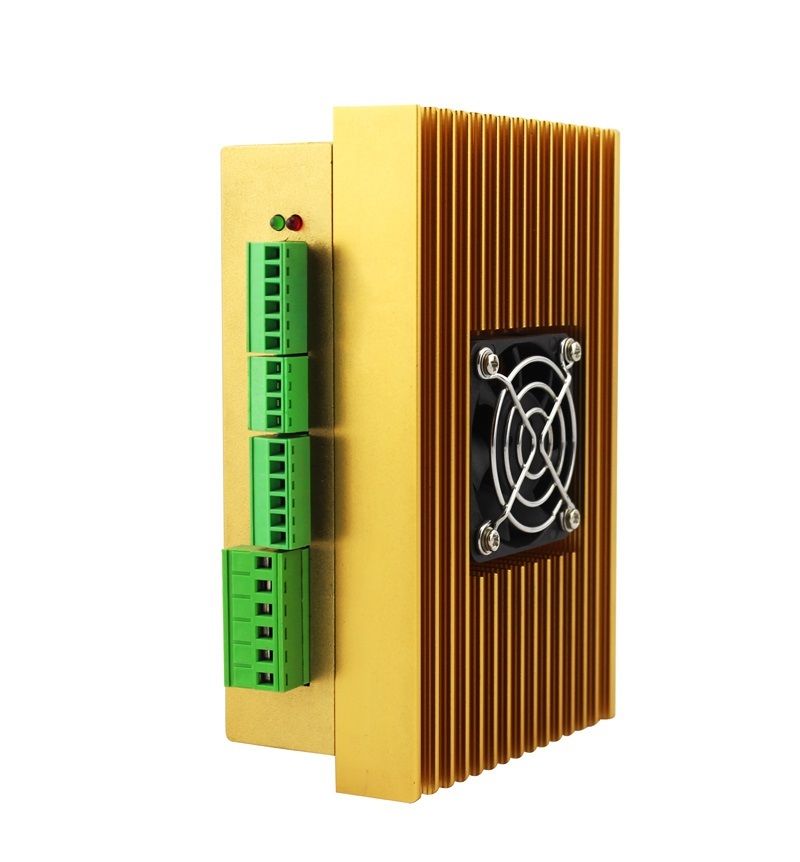

1pcs 2 Phase NEMA34 geschlossener Regelkreis Schrittmotortreiber LCDA86H

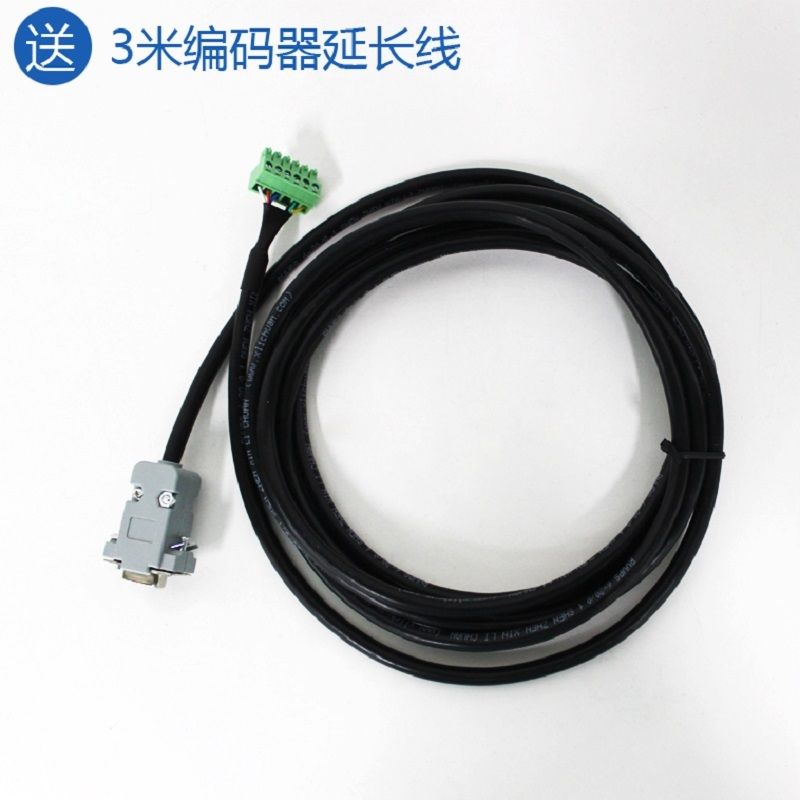

1pcs 3M Encoderkabel. Wenn Sie längere Kabel benötigen, setzen Sie sich bitte mit uns in Verbindung

Motorparameter-Übersichten

Product Name	2phase nema34 closed loop stepper motor	Brand	Lichuan
External Diameter	86mm * 86mm	Highest speed	1200 rolls/min
Motor Length	120mm(encoder contained)	No. of encoder	1000 line
Holding Torque	6N.M	Diameter of shaft	14 mm
Weight	3.3 kg	Matched Driver	LCDA86H

Driver Basic Parameters

Name	2 phases 86 closed loop stepper driver	Brand	Lichuan
Model	LCDA86H	Drive motor	2 phases 86 closed loop step motor
Drive voltage	20-70VAC/30-100 VDC	Drive current	max 6 A
Subdivision range	2-256	Signal voltage	5V,current limiting resistance will be added when input 12 or 24V
Pulse frequency	200 khz/500khz	Alarm output	support
Signal input	pulse / direction and enable	Warranty period	1 year
