NEMA34 12N.m 2phaseasy servo Closed-Loop-Schrittmotor-Antriebs-Kit CNC AC20-75V LCDA86H + LC86H2160

Product Name

2phase nema34 closed loop stepper motor

Brand

Lichuan

External Diameter

86mm * 86mm

Highest speed

1200 rolls/min

Motor Length

178mm(encoder contained)

No. of encoder

1000 line

Holding Torque

12N.M

Diameter of shaft

14 mm

Weight

5.4 kg

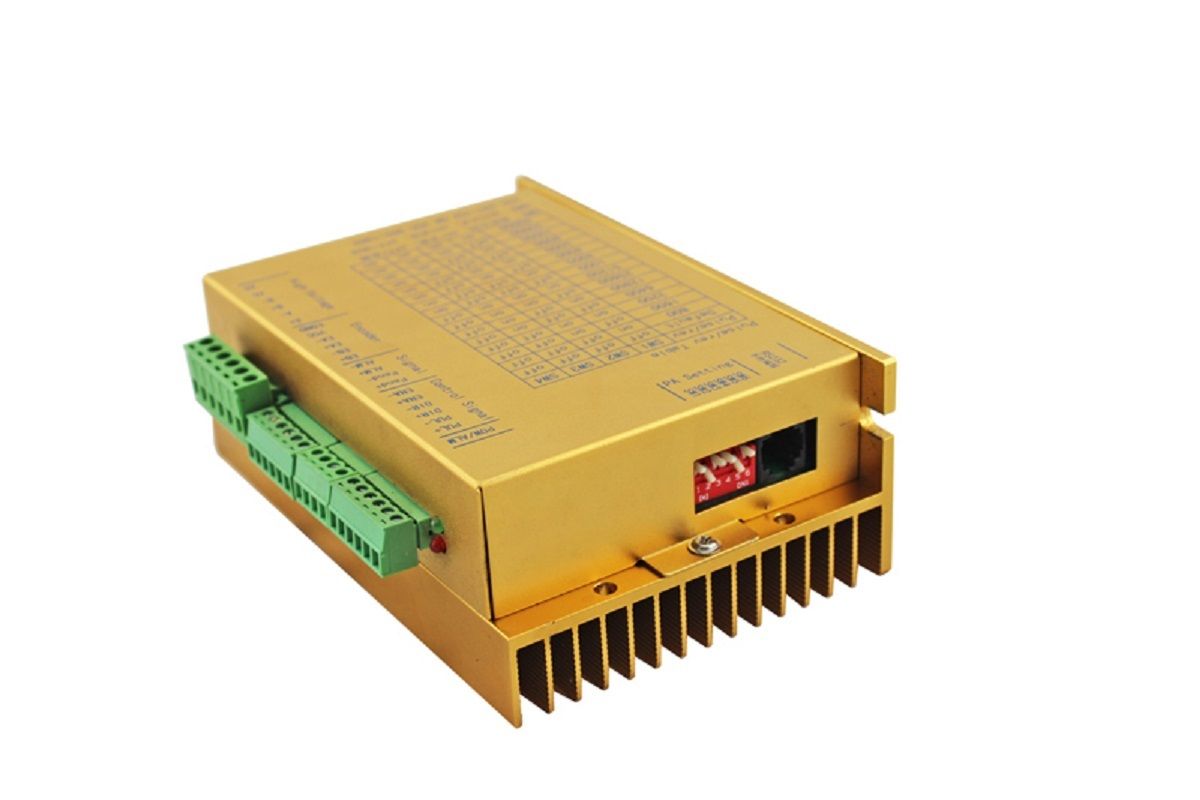

Matched Driver

LCDA86H

Name

2 phases 86 closed

loop stepper driver

Brand

Lichuan

Model

LCDA86H

Drive motor

2 phases 86 closed loop step motor

Drive voltage

20-70VAC/30-100 VDC

Drive current

max 6 A

Subdivision
range

2-256

Signal voltage

5V,current limiting resistance will

be added when input 12 or 24V

Pulse frequency

200 khz/500khz

Alarm output

support

Signal input

pulse / direction and enable

Warranty
period

1 year
