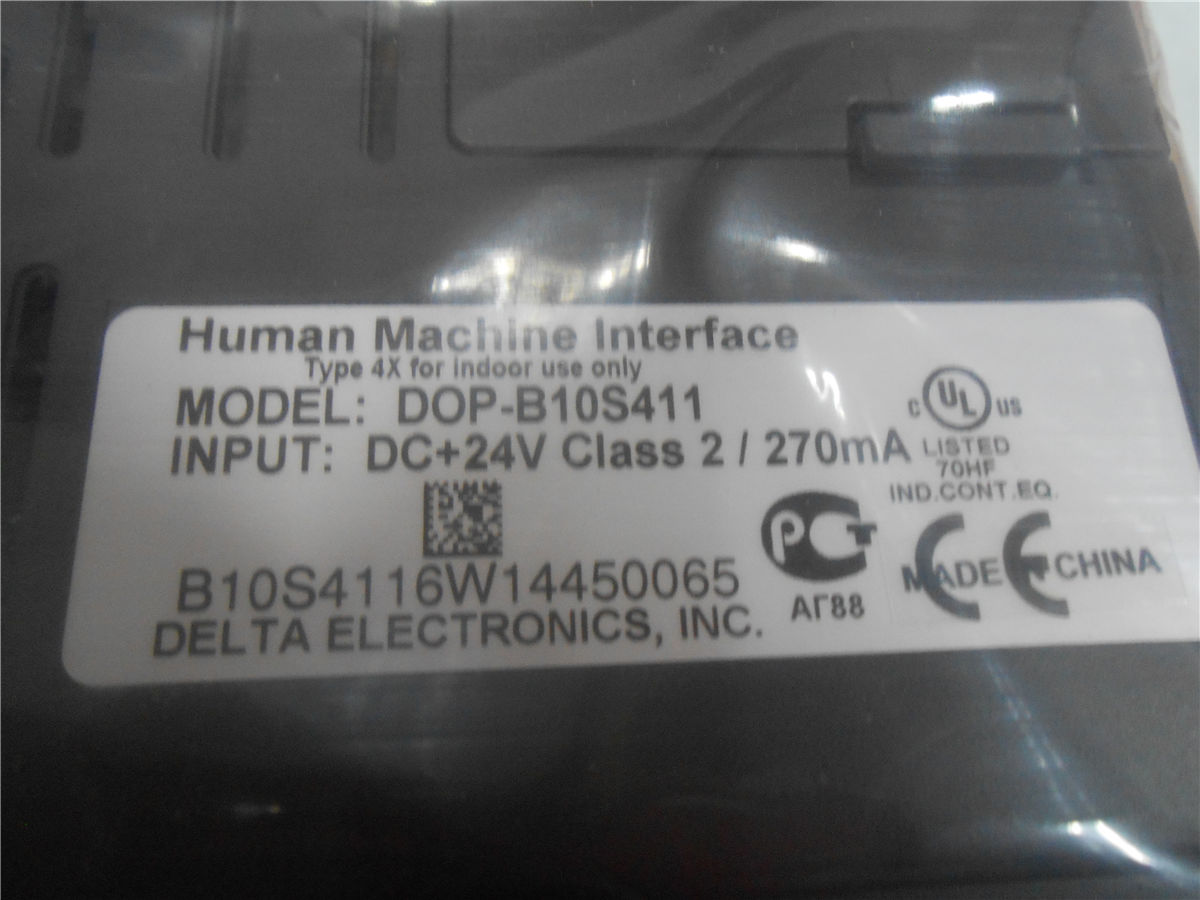

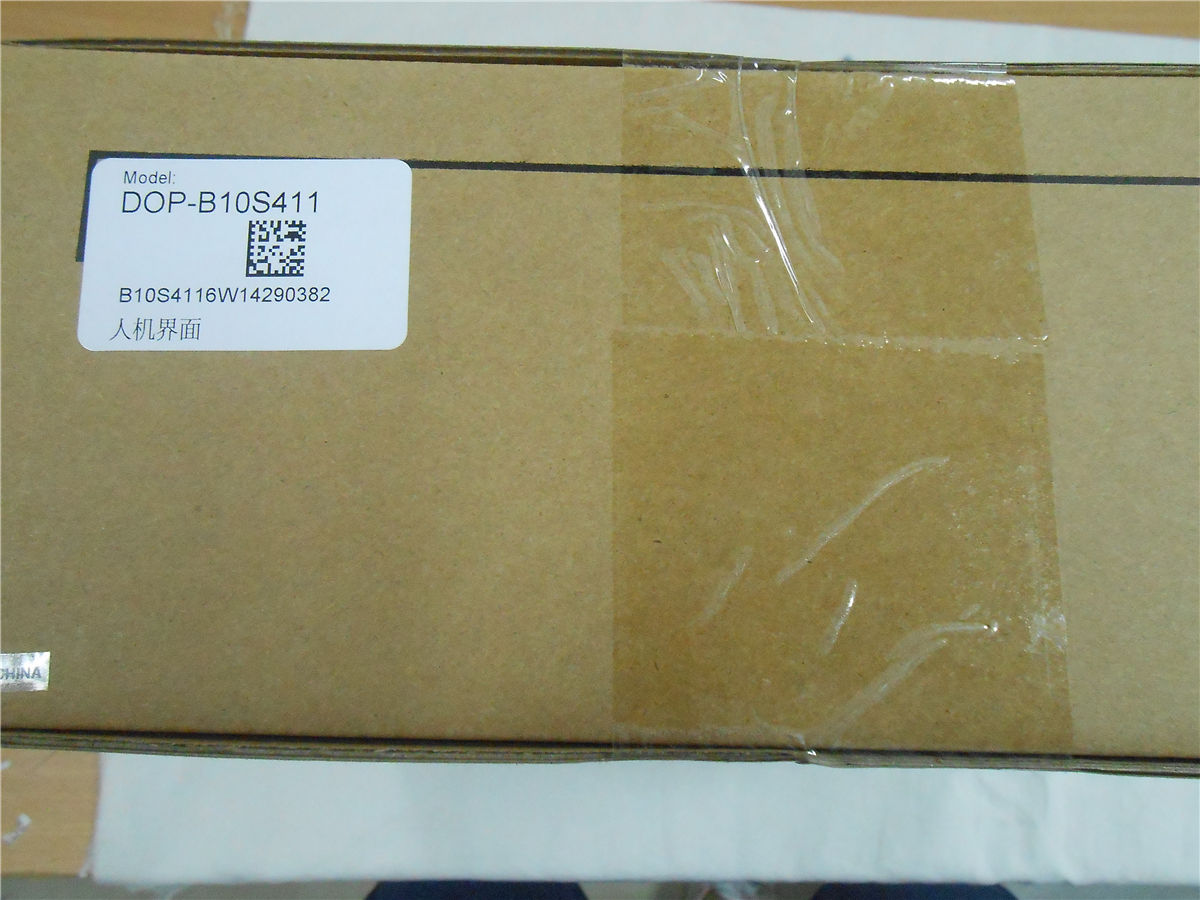

DOP-B10S411 Delta HMI Touch Screen 10 inch 800*480 new in box [DOP-B10S411] - €210.18

Startseite / Servoantriebe / DOP-B10S411 Delta HMI Touch Screen 10" inch 800*480 new in box

$DOP-B10S411 Delta HMI Touch Screen 10\" inch 800*480 new in box$

Product Description

1, package included:

1pcs DOP-B10S411 human machine interface HMI touchscreen new in box;

1pcs programming cable(Onlyoffer it free when you ask for after order. Not ship it default. The communicationcable is not included, if you need, please contact us and inquiry it)

The software is free(we cansend it by email if you can’t download it by yourself)

2, Performance specification

MODEL		DOP-B10S411
LCD MODULE	Display Type	10.1" Widescreen TFT LCD (65536 colors )
	Resolution	800 x 480 pixels
	Back Light	LED Back Light (less than 10,000 hours half-life at 25°C) (Note 1)
	Display Size	219.6 x 131.76mm
Operation System		Delta Real Time OS
MCU		32-bit RISC Micro-controller
NOR Flash ROM		Flash ROM 128 MB(OS System: 30MB / Backup: 16MB / User Application: 82MB)
SDRAM		64Mbytes
Backup Memory		16Mbytes
Sound Effect Output	Buzzer	Multi-Tone Frenquency (2K~4K Hz) / 85dB
	AUX	N/A
Ethernet Interface		N/A
Memory Card		N/A
USB		1 USB Host Ver 1.1 / 1 USB Client Ver 2.0
Serial COM Port	COM1	RS-232 (supports hardware flow control)
	COM2	RS-232/ RS-485(has built-in isolated power circuit ( N o t e 3 ) )
	COM3	RS-232 / RS-422 / RS-485(has built-in isolated power circuit )
Function Key		N/A
Perpetual Calendar (RTC)		Built-in
Cooling Method		Natural air circulation
Safety Approval		CE / UL / KCC (Note 4) (Note 4)
Waterproof Degree		IP65 / NEMA4
Operation Voltage (Note 5)		DC +24V (-10% ~ +15%) (has built-in isolated power circuit )
Voltage Endurance		AC500V for 1 minute (between charging (DC24V terminal) and FG terminals)
Power Consumption (Note 5)		6.6W
Backup Battery		3V lithium battery CR2032 x 1
Backup Battery Life		It depends on the temperature used and the conditions of usage, about 3 years or more at 25°C.
Operation Temp.		0°C ~ 50°C
Storage Temp.		-20°C ~ +60°C
Dimensions(W) x (H) x (D)mm		272 x 200 x 61
Panel Cutout(W) x (H)mm		261.3 x 189.3
Weight		Approx.1520g
