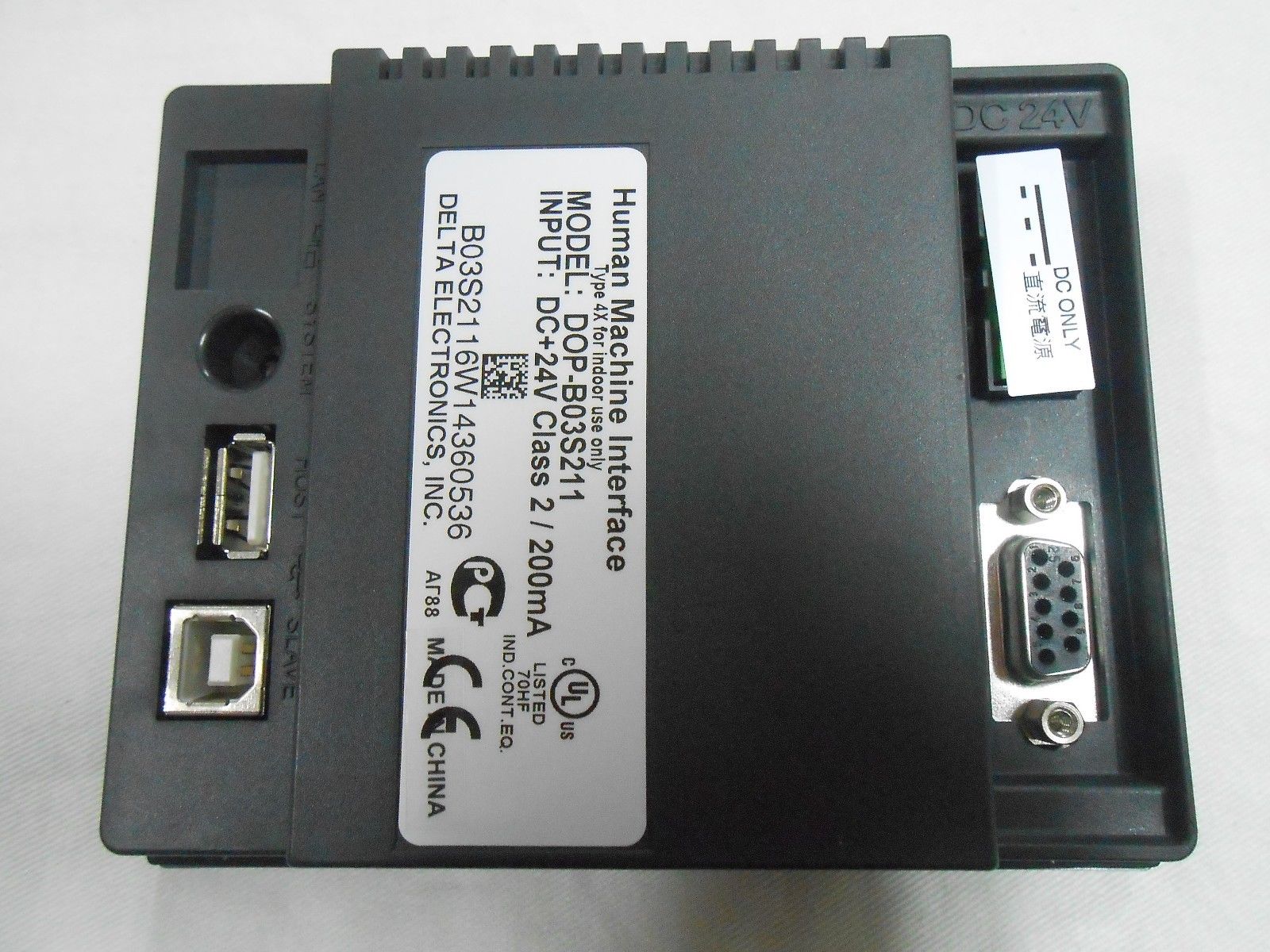

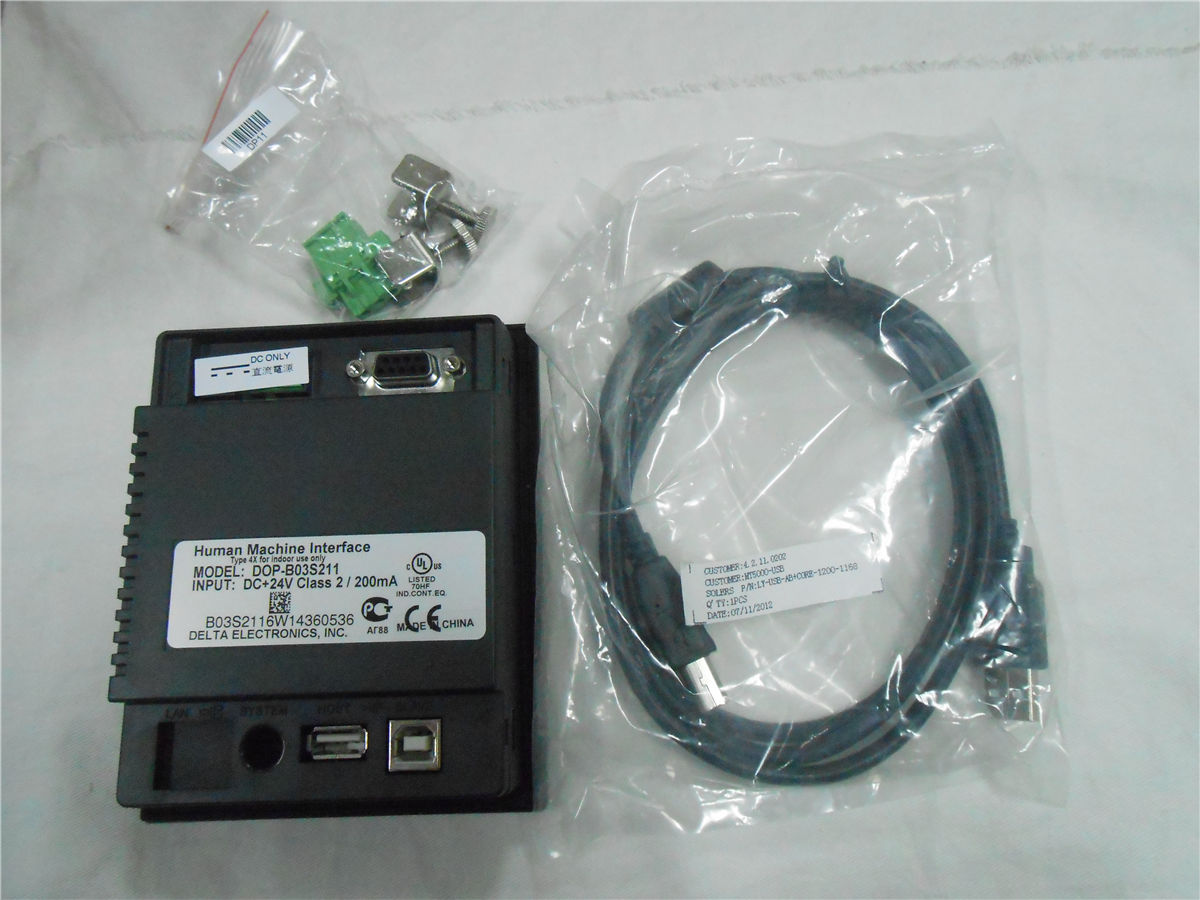

DOP-B03S211 Delta HMI Touchscreen 4,3 Zoll 480 * 272 mit Programmkabel neu

Model

DOP-B03S211

DOP-B03E211

LCD MODULE

Display Type

4.3" TFT LCD (65536 colors)

Resolution

480 x 272 pixels

Backlight

LED Back Light (less than 20,000 hours half-life at 25 degree

Display Size

95.04 x 53.856mm

Operation System

Delta Real Time OS

MCU

32-bit RISC Micro-controller

NOR Flash ROM

Flash ROM 128 MB

(OS System: 30MB / Backup: 16MB / User Application: 82MB)

SDRAM

64Mbytes

Backup Memory

32Kbytes

Buzzer

Multi-Tone Frequency (2K ~ 4K Hz) / 85dB

USB

1 USB Slave Ver 2.0

1 USB Host Ver 1.1

Serial COM Port

COM1

RS-232(supports hardware flow control) / RS-485

COM2

RS-422/RS-485

Ethernet Interface

N/A

10M/100M

Perpetual Calendar

Built-in

Cooling Method

Natural air circulation

Safety Approval

CE / UL (Note 3)

Waterproof Degree

IP65 / NEMA4 (Note 3)

Operation Voltage

DC +24V (-10% ~ +15%) (please use isolated power supply)

Voltage Endurance

AC500V for 1 minute (between charging (DC24V terminal) and FG terminals)

Power Consumption

4.8W

7.2W

Backup Battery

3V lithium battery CR2032 x 1

Backup Battery Life

It depends on the temperature used and the conditions of usage, about 3 years or more at 25 degree.

Operation Temperature

0~50 degree

Storage Temperature

-20~60 degree

Ambient Humidity

10% ~ 90% RH [0 ~ 40oC], 10% ~ 55% RH [41 ~ 50oC], Pollution Degree 2

Vibration

IEC 61131-2 compliant 5Hz<=f<8.3Hz = Continuous: 3.5mm, 8.3Hz<=f<=150Hz = Continuous: 1.0g

Shock

IEC 60068-2-27 compliant 15g peak for 11 ms duration, X, Y, Z directions for 6 times

Dimensions (W) x (H) x (D) mm

129 x103 x 39

Panel Cutout (W) x (H) mm

118.8 x 92.8

Weight

Approx. 230g

Approx. 264g
