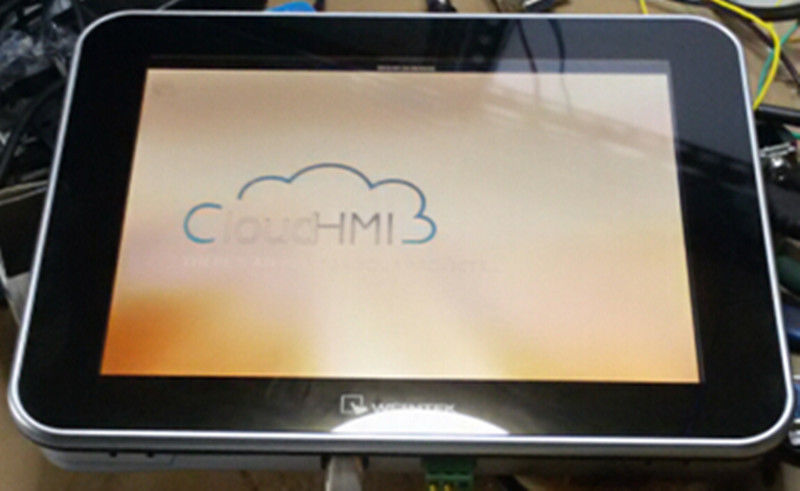

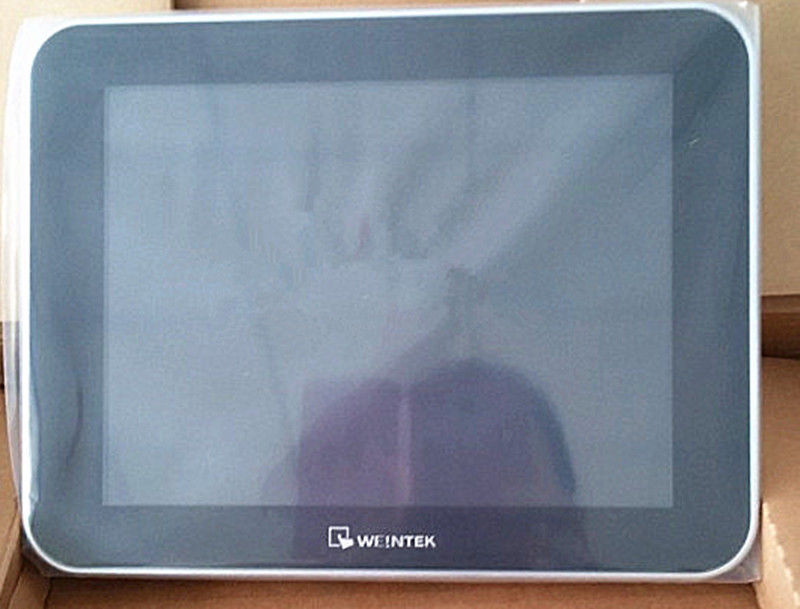

cMT-iV5 WEINVIEW Anzeigebildschirm des HMI 9.7 Zoll 1024 * 768

display

Display type

9.7”TFT

resolution

1024*768

lightness (cd/m2)

350

contrast

500:1

backlight

LED

Backlight life

30,000 hours

color

262k

Touch panel

Reinforced glass capacitive touch screen

memory

Flash (MB)

512

DRAM (MB)

1024

processor

32Bit RISC Cortex-A9 1GHz

communication

SD

N/A

USB Host

USB 2.0 x 1

USB Client

N/A

Ethernet

10/100/1G Base-T

COM

NO

Voice

Built in

power

input

24±20%VDC

power

900mA 24V

Isolated power

Built in

Pressure-proof

500VAC (1 munite)

Insulating resistance

50MW at 500VDC

Quake-proof

10 to 25Hz(X,Y,Z 2G 30munites)

Specifications

Sheathing material

ABS

Outside measurement

257.2x 199 x32.7mm

Opening size(mm)

250x 192mm

Weight(kg)

0.76 kg

Operating Environment

Protection level

NEMA4/IP65

Storage Temperature

-20 to 60°C (-4°to 140°F)

Operating Temperature

0°to 50°C(32°to 122°F)

Operating Humidity

10% to 90% 40°C

CE Certification

CE

CE marked

Software

no
