3 Phasen 220 V 1500 W 1,5 kW 6 Nm 2500 U/min 130 mm AC-Servomotor-Antriebssatz 2500

3phase 220V 1500w 1.5kw 6N.m 2500rpm 130mmAC servo motor drive kit 2500ppr with 3m cable



Package including:

Product	Specification	Quantity
LC 1500w servo motor	LCMT-15L02NB-130M06025B	1
LC 1500w servo drive	LCDB2-153002-LB1332	1
Servo power cable	Standard configuration (3m)	1
Servo encoder cable	Standard configuration (3m)	1



If you need the servo motor with brake,please contact with us.

If you need longer cable for this servosystem, please write us .we can offer 5m,10m,15m,20m length cables.

Please leave your email address to get theuser manual of the servo driver if you need.



 Lichuan Servo MotorNaming Rules

   LCMT - 02 L 02 N B - 60 M006 30 B



·        LCMT--- Product information

·        02-------- 200W ( 04---400W/  07---750W /  10---1KW )

·        L---------- Motor inertia ( L---low /M---middle )

·        02-------- Sensing form ( 01---line savingencoder 2500     02---15 type encoder 2500 )

·        N---------- Without brake (Z---with brake )

·        B--------- only keyway no oilseal ( A---only oil seal no keyway  C---oil seal and keyway )

·        60-------- Frame size

·        M006---  Torque

·        30-------- Speed

·        B---------  B series ( A--- A series /C--- C series )



Lichuan Servo Driver Naming Rules



    LCDB2 - 02 20 02 - L B 6 22



·        LCDB2-- Product information

·        02-------- Motor power  (02---200W 04---400W /  07---750W /  10---1KW... )

·        20-------- Peak current ( 20---20A / 30---30A/ 50---50A / 75---75A )

·        02-------- Encoder information ( 01---linesaving encoder  / 02---15 type encoder )

·        L---------- Motor inertia ( L---low /M---middle )

·        B---------Driver series (A---A series / B---B series / C---C series )

·        6--------- Frame size ( including 6 /  8  /  9  /  110 ... )

·        22-------- Voltage ( 22---single phase 220v /32---3 phase 220v / 34---3 phase 380v )

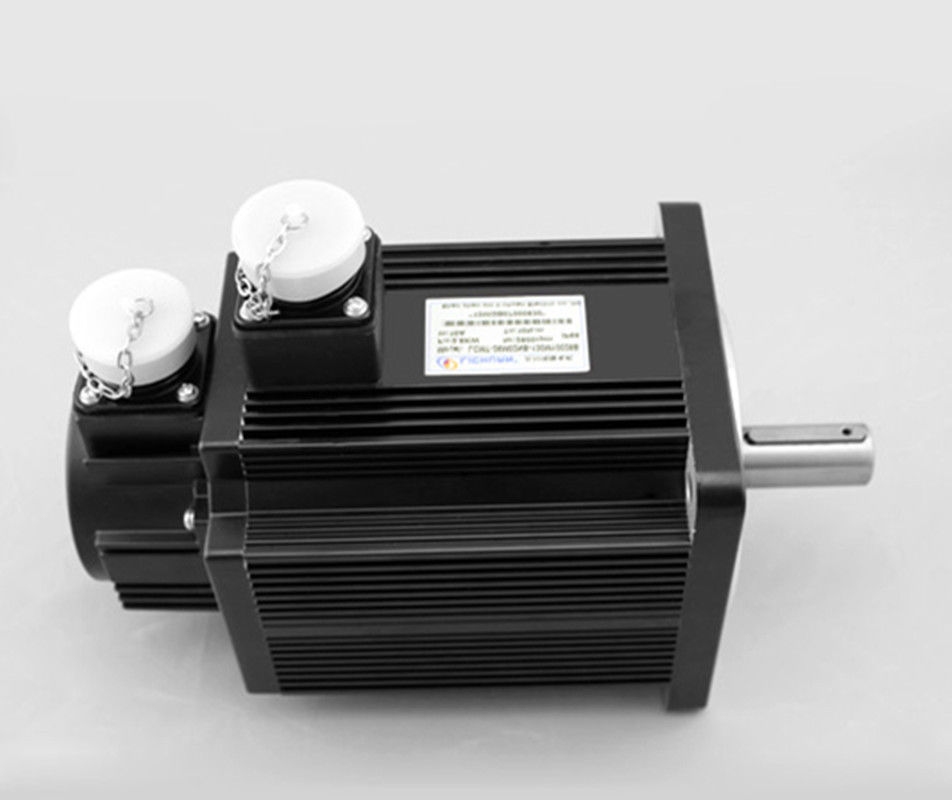

1500W servo Motor LCMT-15L02NB-130M06025B Parameters Overviews

Motor Model	LCMT-15L02NB-130M06025B	Brand	Lichuan
Frame Size	130 mm * 130 mm	Motor Length	179 mm
Shaft Diameter	22mm	Driving Voltage	3 Phase 220V
Rated Torque	6N.M	Rated Speed	2500  RPM
Positioning Accuracy	0.01 mm	Encoder	2500ppr
Weight	8.9kg	Matched Driver	LCDB2-153002-LB1332

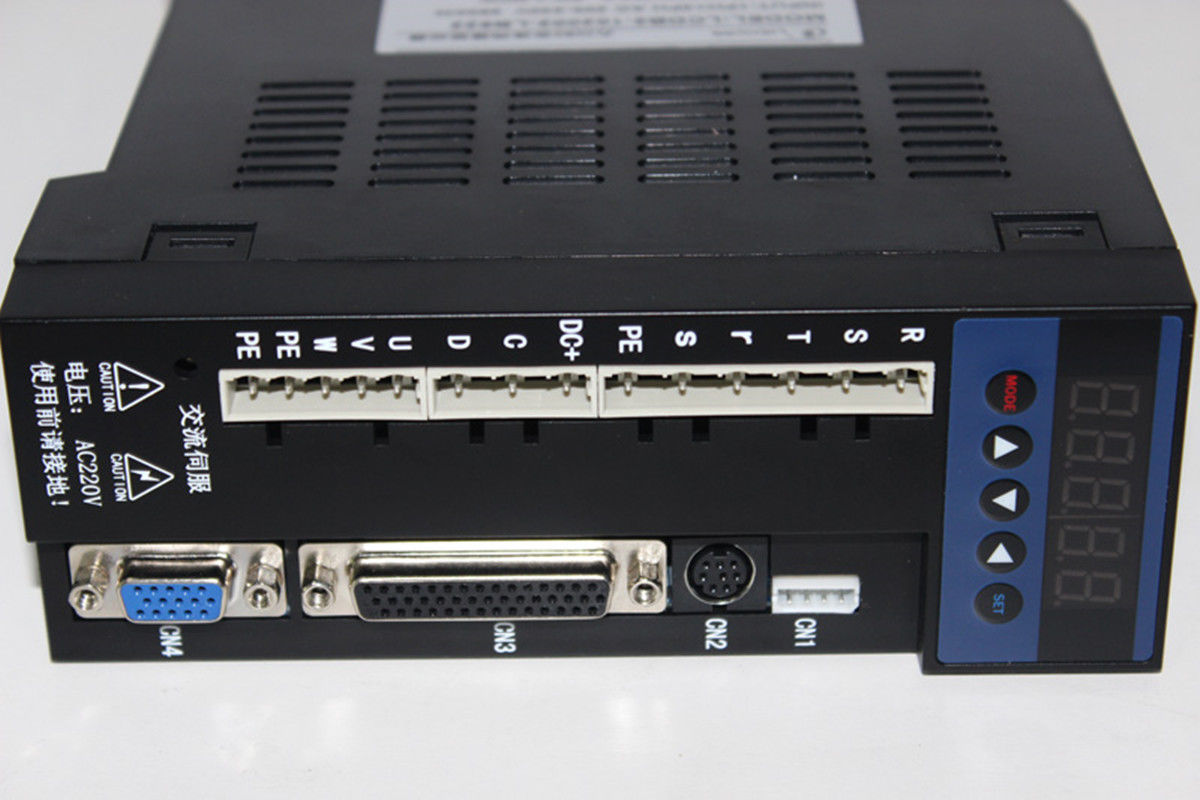

1500W Servo Driver LCDB2-153002-LB1332 Features

1. Power Range: 1.5kw 1500w

2. Input Voltage: AC 200V-230V , 3 phase

3. Position / Speed control mode

4. With MODBUS communicationperformance(RS-485 / RS-422 / RS-232),

   ASCII and RTU communication protocol



5. Encoder: 2500ppr
